Bar Threading Machine

Bar Threading Machine

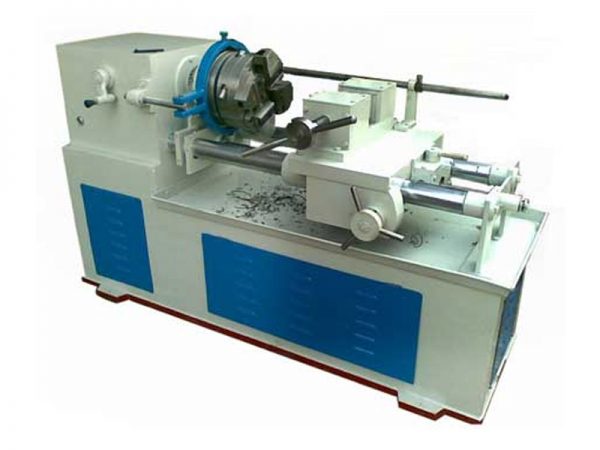

A bar threading machine, also known as a thread rolling machine, is a specialized machine used to create external threads on cylindrical bars or rods. It’s commonly used in industries such as construction, manufacturing, and automotive, where threaded bars are required for various applications like fastening, joining, and reinforcement.

Thread rolling machines use a cold forming process to produce threads by displacing material instead of removing it, which is the case in traditional cutting methods. This process offers benefits like increased thread strength, improved thread surface finish, and faster production rates.

Here’s how a bar threading machine typically works:

  1. Preparation: The operator selects the appropriate threading dies or rolls based on the desired thread size, pitch, and other specifications.
  2. Loading the Bar: The cylindrical bar or rod to be threaded is loaded onto the machine’s spindle or between the threading dies.
  3. Alignment: The bar is properly aligned with the threading dies to ensure accurate thread creation.
  4. Thread Rolling: The threading dies or rolls are brought into contact with the rotating bar. The dies press against the bar with considerable force, displacing the material to form the threads.
  5. Rolling Process: As the threading dies move along the bar, they create the threads through a rolling process. The material on the bar’s surface is pushed into the grooves of the dies, forming the thread profile.
  6. Unloading: Once the desired length of thread is rolled, the bar is unthreaded from the machine. The rolled thread is smooth and precise.

Key features and advantages of bar threading machines:

  • High Efficiency: Thread rolling is a faster process compared to traditional cutting methods, making it suitable for high-volume production.
  • Improved Strength: Cold forming of threads results in threads with increased tensile strength compared to cut threads.
  • Surface Finish: Thread rolling produces threads with a smooth and uniform surface finish.
  • Reduced Material Waste: Since material is displaced rather than removed, there is less material waste during the threading process.
  • Accuracy: Thread rolling machines provide accurate and consistent thread dimensions.
  • Automation: Many thread rolling machines are semi-automatic or fully automatic, reducing the need for manual intervention.

It’s important to choose the right thread rolling machine based on the size, type, and material of the bars you’ll be threading. Thread rolling machines come in different sizes and capabilities, accommodating various thread sizes and pitches. Proper setup, alignment, and maintenance are essential to ensure accurate and reliable thread rolling operations.
